SOLAR YARD & PATHWAY LIGHT

Overhead Lighting offers G-SL-60 has a unique structure design, Yard and Pathway Lighting, it is easy to transport, install and maintain. Integrate the solar panel, led body, battery, and controller into the whole system. This design allows you to adjust the solar panel direction, to ensure the maximum efficiency of solar energy and extend the lifetime.

download product information

G-SL SERIES
GENERAL INFORMATION

Based on the stable electronic circuit of traditional integrated solar street lights and semi-integrated solar street lights, this solar light is upgraded by our engineers on mechanical structure, software and hardware. Bidirectional rota-table solar panel, light without a mechanical switch, mobile perfectly. Safety, eco-friendly and intelligent application.

As a outdoor lighting fixture, the G-SL series are powered by solar energy and designed to offer outstanding performance by utilizing top-grade LED beads, an integrated optical LED lens, a highly efficient mono solar panel, a powerful lithium battery and a self-developed MPPT controller.

Our solar light is a revolutionary product that utilizes the Photovoltaic effect. It is designed to constantly absorb solar energy in daylight and convert it to electricity. The intelligent controller can precisely control the charge, discharge and well preserve electricity in the lithium battery. The light will start to illuminate (powered by the lithium battery), once the illuminance of the ground is reduced to 15lux at night, or the solar panel voltage drops below 5V.

The intelligent controller not only protects the battery from over-charging and over-discharging but can also control the light switch, and the time of switch-on and optimize the brightness effectively according to the outside environment.

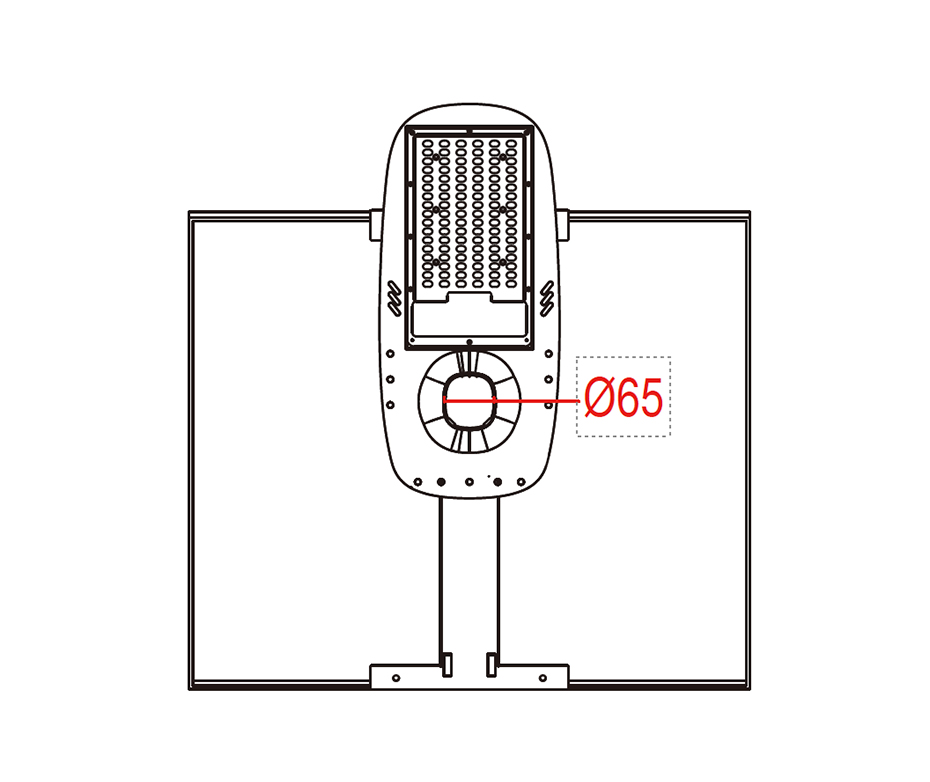

G-SL series | product structure

G-SL series are made with Integrated solar panels, a led body, a battery and a controller. Easy to transport, install and maintain.

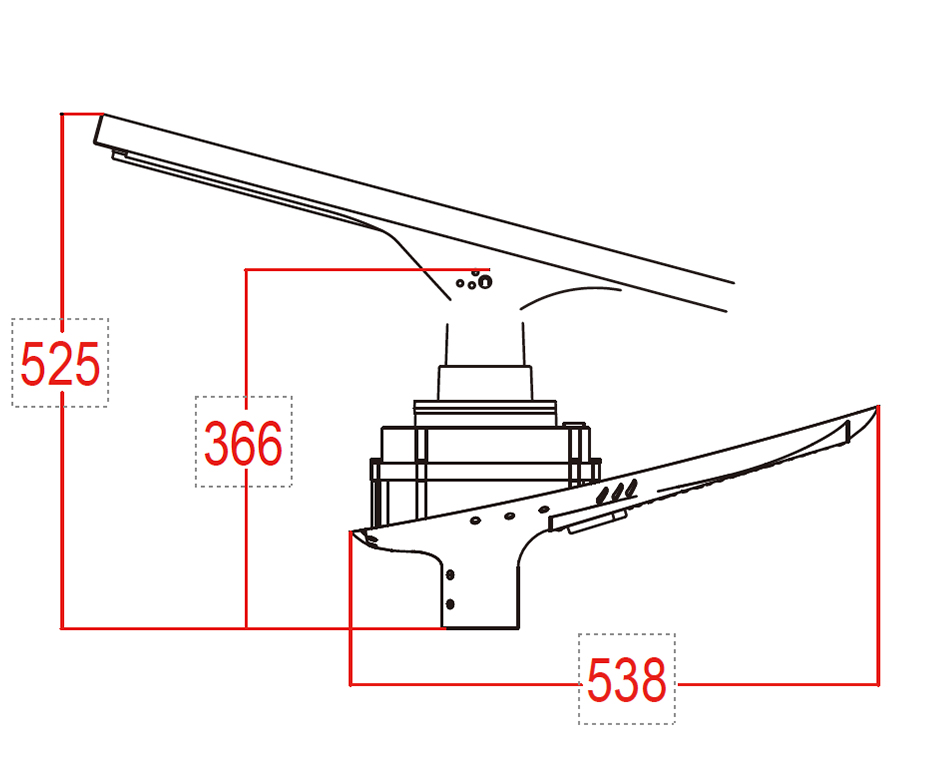

All measurements are in mm.

G-SL60p
TECHNICAL PARAMETERS

Type G-SL60P-40 G-SL60P-50 G-SL60P-60
Panel Power 80W/18V 80W/18V 100W/18V
Material Poly crystalline silicon Poly crystalline silicon Monocrystalline silicon
Solar cell efficiency 17-18% 17-18% 17-18%
Lithium battery Capacity 256WH 320WH 384WH
Charge cycle times 2000 times 2000 times 2000 times
Lamp head Luminous flux 2500-2700Lm 4100-4300Lm 6800-7200Lm
Light output 20W 30W 50W
LED qty 140pcs 140pcs 140pcs
Color temperature 3000-7500K
CRI ≥70Ra
Material of lamp head Aluminium alloy
Lifespan 50000hrs
Beam angle 145°*45°
System Light distribution Batwing lens with polarized light
Lighting Time (full charged) 5-7 rainy days
Operation temperature -20°C ~ 60°C
Installation Top diameter of pole 60mm 60mm 60mm
Mounting height 3-5m 4-6m 6-8m
Installation spacing 20-40m 20-40m 20-40m

WSL-F1 SERIES
SEMI-INTEGRATED SOLAR LED STREET LIGHT
DATA / SPECIFICATION SHEET

  • Patent Design
  • Large battery capacity
  • Adjustable LED panel – 15degree
  • High brightness
  • 5-year warranty
Model WSL-80F1
LED Source 80W
Mono Solar Panel 18V 80W
LifeP04 Battery 12.8v 54AH
Colour Temperature 2700K-6500k
Brightness 5100 LM
Working Times 12-15 hours, 5-7 cloudy/rainy days
Charging Time 6-8hours
IP Rating IP65
Mounting Height 6-8m
Space between lamps 25-35m
Warranty 5 years
Package Size Lamp – 785*300*115mm
Solar Panel – 790*580*80mm
Twin lamp panel – 110w – 1060*580*80mm
Gross Weight Lamp – 6.5kgs
Solar Panel – 11kgs
